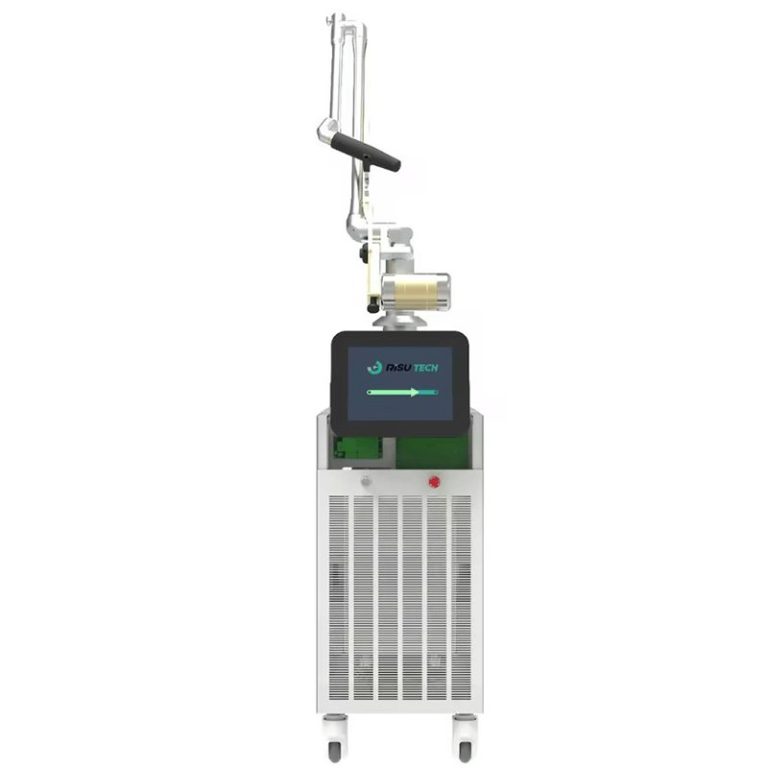

Picosecond laser is an advanced cosmetic technology that offers multiple benefits such as skin whitening, freckle removal, tattoo removal, improvement of fine lines, and skin rejuvenation. It provides an efficient and safe choice for beauty seekers. Risu Tech offers comprehensive product solutions to industry peers. This product has undergone extensive testing and verification, featuring an optimized structural design, excellent electromagnetic compatibility, and customizable appearance and interface services.
This product also offers an integrated multi-pulse width design with both picosecond and nanosecond options, providing customers with differentiated high-end product designs.
This product adopts a modular design, making it easy to maintain. The system features a self-diagnosis function that provides specific error prompts in case of a malfunction, facilitating quick identification and resolution of issues. An optional mechanical shutter function is available, significantly enhancing safety. The principle of the mechanical shutter is to insert an obstructer in the optical path, which can cut off the beam even in the event of a circuit failure, preventing accidental injury. Additionally, the product can be equipped with an energy feedback module, which can monitor the laser pulse energy in real-time. If the actual energy deviates too much from the set energy, the system will promptly alert the user, thereby preventing accidental injuries due to excessive energy or ensuring the effectiveness of treatment by avoiding insufficient energy during normal use.
| Product Type | Picosecond Laser Skin Resurfacing Machine ODM Kit |
| Part Number | PF11 |
| Repetition Rate ( Hz ) | 1-10 |
| Energy ( mJ ) | 350@1064nm |
| 200@532nm | |
| Pulse width | 500ps |
| Aiming Beam | 650nm,≤5mW |
| Transmission system | 7-joint articulated arm |
| Driver method | IGBT/Silicon Controlled Rectifier ( optional ) |
| Cooling Method | Water cooling |
| Operating Temperature | 10-30℃ |
| Power consumption | ≤2000 W |
| Voltage | 220/110V ; 50/60Hz |
The picosecond laser has an extremely narrow pulse width and ultra-high peak power. It can remove pigment targets at targeted locations through selective photothermal and photomechanical effects without harming normal tissue. It has become very popular in the medical beauty industry in recent years. As a source manufacturer of laser medical equipment accessories, Lingsu Medical Technology has launched a series of ODM kit products called PFxx “Nd:YAG/KTP Picosecond Laser System” in order to meet application needs. The laser pulse width is 350ps/500ps/2ns, and the single Pulse energy 500mJ/350mJ@1064nm is optional, and the peak power can reach up to 1.43GW. A variety of lasers, power supplies, and light guide arms are optionally available, and dye wavelength conversion and honeycomb lattice technology can be implemented. Other configurations can be customized.
